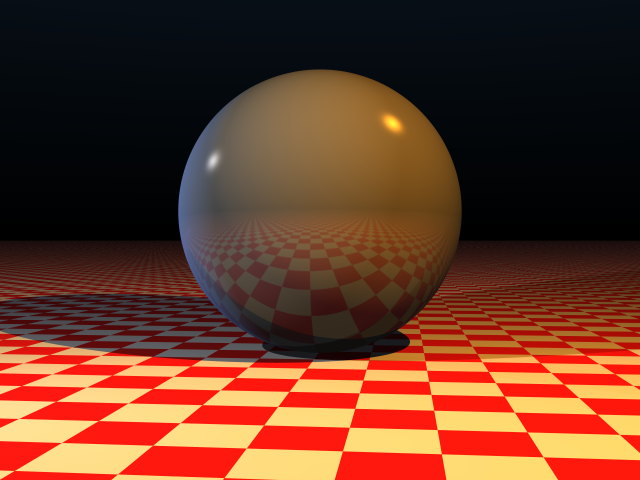

Add multiple light sources to your ray tracing program. ------------------------------------------------------- Add the following code to your 3480/b/lab11.cpp program or another program such as trans.cpp. Whatever is your current ray tracing program. Scene from class with 3 light sources...
Anit-aliasing added on Monday during class...
Copy in the code, then use vi editor to indent correctly.
//Add this
//--------
#define MAX_LIGHTS 200
//Add this to the Global class
//----------------------------
class Global {
public:
Vec lightPos[MAX_LIGHTS];
Vec lightCol[MAX_LIGHTS];
int nlights;
//In init(), add this to your scene
//---------------------------------
//This is 3 lights.
//A key-light, fill-light, and a back light.
g.nlights = 0;
vecMake(400.0, 400.0, 500.0, g.lightPos[g.nlights]);
vecMake(1.2, 1.2, 1.2, g.lightCol[g.nlights]);
++g.nlights;
vecMake(-400.0, 100.0, 500.0, g.lightPos[g.nlights]);
vecMake(0.3, 0.3, 0.3, g.lightCol[g.nlights]);
++g.nlights;
vecMake(-1800.0, 100.0, -1500.0, g.lightPos[g.nlights]);
vecMake(0.5, 0.9, 0.5, g.lightCol[g.nlights]);
++g.nlights;
//Change the getShadow() function header to this
//----------------------------------------------
bool getShadow(int idx, Vec pt)
//New code in the getShadow() function
//------------------------------------
vecSub(g.lightPos[idx], pt, lightDir);
//New trace() function
//--------------------
void trace(Ray *ray, Vec rgb, Flt weight, int level)
{
//Trace a ray through the scene.
if (level > 5 || weight < 0.1) {
return;
}
int i;
Hit hit, closehit;
Object *o;
int h = -1;
closehit.t = 9e9;
for (i=0; i<g.nobjects; i++) {
o = &g.object[i];
switch (o->type) {
case TYPE_DISK:
if (rayDiskIntersect(o, ray, &hit)) {
if (hit.t < closehit.t) {
closehit.t = hit.t;
vecCopy(hit.p, closehit.p);
vecCopy(o->color, closehit.color);
vecCopy(o->norm, closehit.norm);
h=i;
}
}
break;
case TYPE_RING:
if (rayRingIntersect(o, ray, &hit)) {
if (hit.t < closehit.t) {
closehit.t = hit.t;
vecCopy(hit.p, closehit.p);
vecCopy(o->color, closehit.color);
vecCopy(o->norm, closehit.norm);
h=i;
}
}
break;
case TYPE_TRIANGLE:
if (rayTriangleIntersect(o, ray, &hit)) {
if (hit.t < closehit.t) {
closehit.t = hit.t;
vecCopy(hit.p, closehit.p);
vecCopy(o->color, closehit.color);
vecCopy(o->norm, closehit.norm);
h=i;
}
}
break;
case TYPE_SPHERE:
if (raySphereIntersect(o, ray, &hit)) {
if (hit.t < closehit.t) {
closehit.t = hit.t;
vecCopy(hit.p, closehit.p);
vecCopy(o->color, closehit.color);
sphereNormal(closehit.p, o->center, closehit.norm);
h=i;
}
}
break;
}
}
if (h < 0) {
//ray did not hit an object.
//Flt c = asin(ray->d[1]);
Flt c = ray->d[1];
if (c < 0.0) c = 0.0;
//if (c > 1.0) c = 1.0;
rgb[0] += (g.sky[0][0] + (g.sky[1][0] - g.sky[0][0]) * c) * weight;
rgb[1] += (g.sky[0][1] + (g.sky[1][1] - g.sky[0][1]) * c) * weight;
rgb[2] += (g.sky[0][2] + (g.sky[1][2] - g.sky[0][2]) * c) * weight;
return;
}
//Set the color of the pixel to the color of the object.
o = &g.object[h];
if (o->surface == SURF_CHECKER) {
int x = 10000.0 + (closehit.p[0]/2) / 37.0;
int z = 10000.0 + (closehit.p[2]/2) / 37.0;
x = x % 2;
z = z % 2;
if (x==z) {
closehit.color[0] = 0.9;
closehit.color[1] = 0.1;
closehit.color[2] = 0.1;
} else {
closehit.color[0] = 0.9;
closehit.color[1] = 0.9;
closehit.color[2] = 0.9;
}
}
if (o->sf_transmit > 0.0) {
Ray rx;
Vec nh;
vecCopy(closehit.norm, nh);
Flt kr, kt;
fresnel(ray->d, nh, o->sf_iorOutside, o->sf_iorInside, kr);
kt = 1.0 - kr;
//reflect
Vec rrgb = {0.0};
if (o->specular > 0.0) {
kr *= o->spectrans;
kt = 1.0 - kr;
vecCopy(closehit.p, rx.o);
reflect(ray->d, nh, rx.d);
nudge_ray_forward(&rx);
trace(&rx, rrgb, weight*kr, level+1);
}
//transmit
Flt eta = o->sf_iorOutside / o->sf_iorInside;
if ((vecDotProduct(ray->d, nh)) > 0.0) {
//Normal is pointing the wrong way, so flip.
vecNegate(nh);
eta = 1.0 / eta;
}
refract(eta, ray->d, nh, rx.d);
vecCopy(closehit.p, rx.o);
Vec trgb = {0.0};
nudge_ray_forward(&rx);
trace(&rx, trgb, weight*kt, level+1);
rgb[0] += (rrgb[0] + trgb[0]);
rgb[1] += (rrgb[1] + trgb[1]);
rgb[2] += (rrgb[2] + trgb[2]);
}
//else if (o->specular) {
if (o->specular) {
//Build a reflected ray
Vec rcol = {0,0,0};
Ray tray;
#define DISPERSION
#ifdef DISPERSION
Vec tcol = {0,0,0};
int n = 0;
for (int i=0; i<5; i++) {
reflect(ray->d, closehit.norm, tray.d);
vecCopy(closehit.p, tray.o);
nudge_ray_forward(&tray);
tray.d[0] += rnd() * .02 - .01;
tray.d[1] += rnd() * .02 - .01;
tray.d[2] += rnd() * .02 - .01;
vecZero(rcol);
trace(&tray, rcol, weight*0.5, level+1);
tcol[0] += rcol[0];
tcol[1] += rcol[1];
tcol[2] += rcol[2];
++n;
}
Flt fn = 1.0 / (Flt)n;
rcol[0] = tcol[0] * fn;
rcol[1] = tcol[1] * fn;
rcol[2] = tcol[2] * fn;
#else //DISPERSION
reflect(ray->d, closehit.norm, tray.d);
vecCopy(closehit.p, tray.o);
nudge_ray_forward(&tray);
vecZero(rcol);
trace(&tray, rcol, weight*0.5, level+1);
#endif //DISPERSION
//
rgb[0] += rcol[0] * o->spec[0] * weight;
rgb[1] += rcol[1] * o->spec[1] * weight;
rgb[2] += rcol[2] * o->spec[2] * weight;
//
//Look for specular highlight...
//http://en.wikipedia.org/wiki/Specular_highlight
//Blinn Phong lighting model
for (int i=0; i<g.nlights; i++) {
Vec lightDir, halfway;
lightDir[0] = g.lightPos[i][0] - closehit.p[0];
lightDir[1] = g.lightPos[i][1] - closehit.p[1];
lightDir[2] = g.lightPos[i][2] - closehit.p[2];
halfway[0] = (lightDir[0] - ray->d[0]) * 0.5;
halfway[1] = (lightDir[1] - ray->d[1]) * 0.5;
halfway[2] = (lightDir[2] - ray->d[2]) * 0.5;
vecNormalize(halfway);
Flt dot = vecDotProduct(halfway, closehit.norm);
if (dot > 0.0) {
dot = pow(dot, 320.0);
rgb[0] += g.lightCol[i][0] * dot;
rgb[1] += g.lightCol[i][1] * dot;
rgb[2] += g.lightCol[i][2] * dot;
}
}
}
//
for (int i=0; i<g.nlights; i++) {
bool inShad = false;
inShad = getShadow(i, closehit.p);
Flt dot = 0.0;
if (!inShad) {
//The hit point is not in shadow.
//Get light contribution.
//Dot product of light vector and surface normal.
Vec v;
vecSub(g.lightPos[i], closehit.p, v);
vecNormalize(v);
vecNormalize(closehit.norm);
dot = vecDotProduct(v, closehit.norm);
if (dot < 0.0)
dot = 0.0;
}
//The ray hit an object.
for (int j=0; j<3; j++) {
rgb[j] +=
closehit.color[j] * dot * g.lightCol[i][j] * weight;
}
}
rgb[0] += closehit.color[0] * g.ambient[0] * weight;
rgb[1] += closehit.color[1] * g.ambient[1] * weight;
rgb[2] += closehit.color[2] * g.ambient[2] * weight;
return;
}
