Project date: Fall 2018

Main features of project:
   · Cylindrical texture mapping
   · Cylindrical bump mapping
   · Cylindrical specular mapping (in progress)
   · Depth-of-field using an aperture and focal length for each ray
   · 3-point lighting
   · Soft shadows with each light having an area
   · Projected texture mapping on table top
   · Pixel super-sampling for anti-aliasing

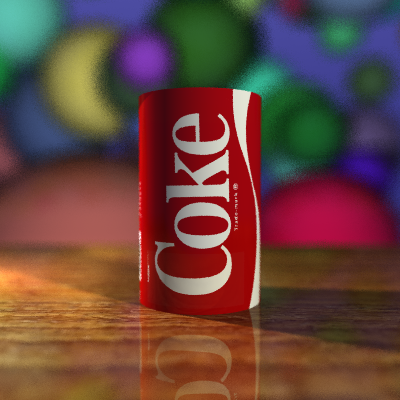

beginning scene



Blinn-Phong specular highlighting added

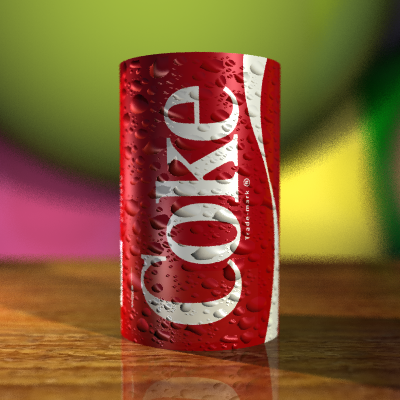

normal mapping of condensation droplets




3-point lighting sources:
   • key light  - front-right
   • fill light - front-left
   • back light - back-left

Table top is a wood texture map.
I took this photo of the fence in my backyard.


Condensation was done with this normal map I found using google.
I learned how to use a normal map on this page.


Here is my can texture found on google.



I also used the can rendering components to produce an animation.
