Assignment

1. Finish all elements of the lab-3 assignment.
2. Create a Data Flow Diagram.

Name your diagram: uvdataflow.gif

Location of your diagram: public_html/3350/uvdataflow.gif

Data Flow Diagram Help

Step 1:

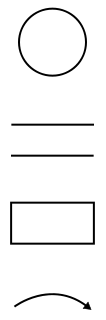

A DFD uses 4 symbols only.
You must use 4 symbols only. You must use all 4 symbols.




Internal Process or Function  -  circle or rounded box





Data Store  -------------------  open-ended box





External Input/Output  --------  square box




Data flowing  -----------------  an arrow







Here is a sample page that I like.

sample data flow diagrams

Some components of your system:

1. The user enters host and page data on the command-line.

2. The uvlab3 program starts running and converts the input data into some
   kind of output data, then it flows on to some other entity, like maybe the
   Odin server using some kind of protocol like maybe HTTP.

3. You wrote and put into place many of the components of this system.
   Show where they fit in to your DFD.

4. The HTTP protocol is a request-response protocol. This means that data
   flows outward and then something is returned to the user.

5. Build a nice clean DFD.
   Leave your original uvdiagram.gif file in place.


Follow these rules as a guide...
 1. Each process should have at least one input and output arrow.
 2. Each file/database should have at least one data flow out.
 3. Data stored in a system must go through a process.
