CMPS 350 Chapter 6 - Data Types

Section 6.1 - 6.5

Primitive Data Types

A "descriptor" for a data type (int, float, double, etc.) determines the range and kind of values, the size of storage, and allowable operations (elements of C) All languages have a set of primitive data types; e.g. built-in and not defined in terms of other data types. Primitive data types of most languages inc.: integer, float, character,array. Some primitive data types are merely reflections of the hardware - Others require some non-hardware support. The size of a data type is platform dependent in C/C++ but not in Java see C's /usr/include/limits.h

Integer

Floating Point

    sign  exponent     fraction
   -----|------------|----------------  = 32 bits (single-precision)
   1 bit  8 bits       23 bits
   ------------------------------------
   31                                 0

    sign  exponent     fraction
   -----|------------|---------------- =  64 bits (double-precision)
   1 bit  11 bits       52 bits

Decimal

BCD

Boolean

Character

Character String Types

o Character String Type Operations: Assignment and copying, comparison (=, >, etc.), catenation, substring reference, pattern matching. see Perl regexes.

Some regex metacharacters:
   ?    0 or 1 time
   *    0 or more times
   +    1 or more times
   []   marks a character class to match a single character
   ^    negation inside [];  anchor at beginning of line otherwise
   $    marks end of line
   ()   substring deliminters  (must be escaped in vim)
   $1   refers to first matched substring (this is \1 in vim)
   {}   a{n} means match 'a' exactly "n" times

   some of Perl's abbreviations
   \d is a digit and represents [0-9]
   \s is a whitespace character and represents [\	\t\r\n\f]
   \w is a word character	(alphanumeric or _) and represents [0-9a-zA-Z_]
   \D is a negated \d; it	represents any character but a digit [^0-9]
   \S is a negated \s; it	represents any non-whitespace character [^\s]
   \W is a negated \w; it	represents any non-word	character [^\w]
   The period '.'	matches	any character but "\n"

  Ex.
  $x = 'the cat in the hat';
	 $x =~ /^(.*)(at)(.*)$/; #$1 = 'the cat in the h'; $2='at'; $3=''(0 matches)

   What do these regexes match?

    /^[A-Za-z][A-Za-z\d]+/
    /[yY][eE][sS]/;
    /[0-9a-fA-F]/;
    /[^0-9]{4}/;

   Substring replacement (substitution) syntax:

   s/regex/replacement/modifiers
   ex.
	/^'(.*)'$/$1/;	# strip	single quotes that occur at start and end of line

   Try out a few thing with this file in vim.

Character String Type

Primitive in SNOBOL4 (a string manipulation language) ; many operations and elaborate pattern matching. Primitive in Java as a String class (don't need to include anything extra)

String length options (only Ada supports all three):

1. Static: COBOL, Java's String class
2. Limited Dynamic Length: C/C++ \0 marks end of string in fixed array (example)
3. Dynamic (no maximum): SNOBOL4, Perl, JavaScript

As a primitive type strings aid writability. But C was a systems language and did not see strings as a priority. Inexpensive as a primitive type with static length. Dynamic length is nice, but is it worth the expense?

String implementation options:

1. Static length: need compile-time descriptor for length and address
2. Limited dynamic length: may need a run-time descriptor for length (not in C)
3. Dynamic length: need run-time descriptor for address, max length and current
   length; allocation/de-allocation biggest implementation problem

User-Defined Ordinal Types

Enumeration Types

Design issues: Can enumeration constant appear in more than one type definition, if so, how is the type of an occurrence of that constant checked? Are enumeration values coerced to integer? Any other type coerced to an enumeration type?

Evaluation of Enumerated Type: Aid to readability, e.g., no need to code a color as a number. Aid to reliability, e.g., compiler can check operations (don't allow colors to be added). No enumeration variable can be assigned a value outside its defined range. Ada, C#, and Java 5.0 provide better support for enumeration than C++; e.g. enumeration type variables are not coerced into integer types

Subrange Types

        type Days is (mon, tue, wed, thu, fri, sat, sun);
      subtype Weekdays is Days range mon..fri;
      subtype Index is Integer range 1..100;

      Day1: Days;
      Day2: Weekday;
      Day2 := Day1;

Implementation of User-Defined Ordinal Types:

Enumeration types are implemented as integers. Subrange types implemented like parent types with code inserted by compiler to restrict assignments to subrange variables.

Array Types

Array Design Issues:
What types are legal for subscripts? Are subscripting expressions in element references range checked? When is the subscript range bound (when is the size of array determined)? When does allocation take place? What is the maximum number of subscripts? Can array objects be initialized? Are any kind of slices allowed?

Array Indexing:
Indexing (or subscripting) is a mapping from indices to elements

	array_name (index_value_list) ->  an element

Arrays Index (Subscript) Types:
FORTRAN, C: integer only Pascal: any ordinal type (integer, Boolean, char, enumeration) Ada: integer or enumeration (includes Boolean and char) Java: integer types only

Range Checking:
C, C++, Perl, and Fortran do not specify range checking. Ada, Java, ML, C# specify range checking. Ada makes it MANDATORY

Five Array Allocation Categories:
C Example of all five methods

1. Static: the subscript range is statically bound and storage allocation is also at compile time (not on the runtime stack) Advantage: efficiency (no dynamic allocation)

2. Fixed stack-dynamic: the subscript range is statically bound, but allocation is done at declaration time during function call Advantage: space efficiency

3. Stack-dynamic: the subscript range is dynamically bound and the storage allocation is dynamic (on run-time stack) Advantage: flexibility (the size of an array need not be known until the array is to be used)

4. Fixed heap-dynamic: similar to fixed stack-dynamic: storage binding is heap dynamic but the size of the array is fixed

5. Heap-dynamic: binding of the subscript range and storage allocation are both dynamic and can change during execution. Advantage: flexibility (arrays can grow or shrink during program execution)

C and C++ arrays that include static modifier are static. C and C++ arrays without static modifier are fixed stack-dynamic. Ada arrays can be stack-dynamic. C and C++ provide fixed heap-dynamic arrays. C# includes a second array class ArrayList that provides fixed heap-dynamic. Perl and JavaScript support heap-dynamic arrays.

Array Initialization:
Some languages allow initialization at the time of storage allocation:

     // C, C++, Java, C#
    int list [] = {4, 5, 7, 83} <== an aggregate constant is assigned to list

    char name [] = "freddie";   // C and C++

    char *names [] = {Bob, Jake, Joe};  // C and C++

    String[] names = {Bob, Jake, Joe};  // Java String objects


     1,2,3,4 + 2,3,1,5 = 3,5,4,9

Slices:
A slice is a method to reference a substructure of an array. Mechanism (only useful in languages that have array operations) Assume, the following array declarations in Fortran 95:

   Integer, Dimension (10) :: Vector       // a 1-dimensional array
   Integer, Dimension (3, 3) :: Matrix     // a 2-dimensional array
   Integer, Dimension (3, 3, 4) :: Cube    // a 3-dimensional array

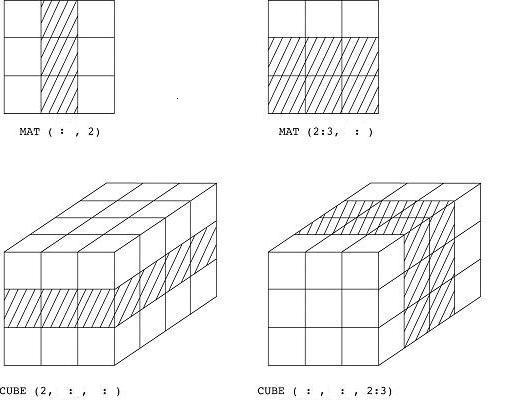

   Slice Examples:
   Vector (3:6) is a four element array
   Mat (:,2) is the second column of Mat  (an array)
   Mat (2:3,:) is the 2nd and 3rd rows of Mat  (a matrix)
   Cube (2,:,:) is a matrix
   Cube (:,:,2:3) is another 3-dimensional array

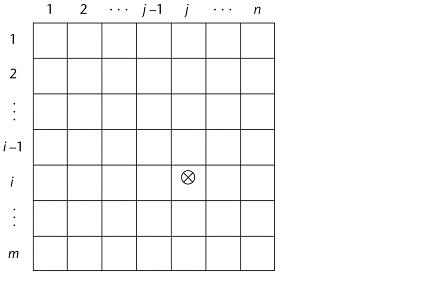

Implementation of Arrays:
Access function maps subscript expressions to an address in the array Access function for single-dimensioned arrays:

   address(list[k]) = address (list[lower_bound]) + ((k-lower_bound) * element_size)

   array_starting_address + ((i * n_cols + j) * element_size)

Compile-Time Descriptors for arrays:
All arrays: starting address, element type, index type

Single-dimensional: index range (e.g. lower and upper bound)

Multi-dimensional: index range 1 ... index range n, number of dimensions

Associative Arrays (Hash tables, Hash maps)

An unordered collection of data elements indexed by an equal number of values called keys. User defined keys must be stored. Design issue: What is the form of references to elements? Examples: a hash in Perl and support in Java/C++/JavaScript

Sections 6.7 - 6.9

* RECORD TYPES

   A possibly heterogeneous aggregate of data elements individually identified
   by names (usually called fields)

   Design issues
   What is the syntactic form of references to the field?
   Are elliptical references allowed? e.g. ellipsis (...) any omitted part of
   speech that is understood

   Ex: structs in C

   COBOL ( level numbers show nested records )

    01 EMP-RECORD.
       02 EMP-NAME.
           03 FIRST    PIC IS X(20).
           03 MIDDLE   PIC IS X(10).
           03 LAST     PIC IS X(20).
       02 HOURLY-RATE PIC IS 99V99.

   Record Field Reference:   MIDDLE OF EMP-NAME OF EMP-RECORD

   Fully qualified references include all record names

   Elliptical references allow leaving out some parts of record names as long
   as the reference is unambiguous; e.g.

   FIRST, FIRST OF EMP-NAME, and FIRST of EMP-RECORD are elliptical references
   to the employee's first name

   Ada
   Record structures are indicated in an orthogonal way:

      type Emp_Name_Type is record
             First: String (1..20);
             Mid: String (1..10);
             Last: String (1..20);
      end record;

      type Emp_Rec_Type is record
            Employ_Name: Emp_Name_Type;
            Hourly_Rate: Float;
      end record;

      Emp_Rec: Emp_Rec_Type;

   Record Field Reference:
   Emp_Rec.Name    <==  dot notation - most commonly used


   Operations on Records
   Assignment is very common if the types are identical
   Ada allows record comparison
   Ada records can be initialized with aggregate literals

   COBOL provides MOVE CORRESPONDING:
   Copies a field of source record to the corresponding field in target record

   Evaluation and Comparison to Arrays
   Straight forward and safe design

   Records are used when collection of data values is heterogeneous

   Access to array elements is slower than to record fields, because
   subscripts are dynamic (field names are static); e.g. myArray[i]

   Dynamic subscripts could be used with record field access, but would
   disallow type checking and be much slower

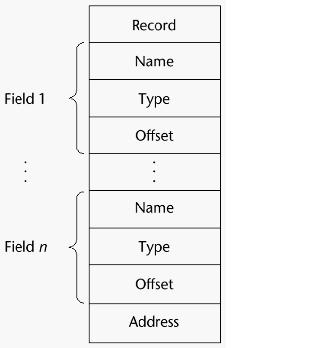

   Implementation of Record Type:


*  UNION TYPES

   This variables can store different type values at different times during
   execution

   Design issues
   Should type checking be required?
   Should unions be embedded in records?

   Unions:
  o  every member begins at offset 0 from the address of the union
  o  the size is the size of the largest member
  o  only one member value can be stored in a union object at a time

   Discriminated vs. Free Unions

   Fortran, C, and C++ provide union constructs with no language support for
   type checking; the union in these languages is called free union; Ex. C

   Type checking of unions require that each union include a type indicator
   called a discriminant

   Discriminated Union Type
   Ex. Ada

       type Shape is (Circle, Triangle, Rectangle);
       type Colors is (Red, Green, Blue);
       type Figure (Form: Shape) is
           record
              Filled: Boolean;
              Color: Colors;
              case Form is
                   when Circle => Diameter: Float;
                   when Triangle =>
                       Leftside, Rightside: Integer;
                       Angle: Float;
                   when Rectangle => Side1, Side2: Integer;
             end case;
          end record;

Evaluation of Unions: Potentially unsafe construct if no type checking. Java and C# do not support unions. Reflective of growing concerns for safety in programming language. *Note: unions and structures are prevalent in C system programming. (see semaphore example) C was developed to be a low-level system programming language C is still the most popular choice for low-level programming For applications programming, the power of C is also its downfall obfuscated C code contest

POINTER AND REFERENCE TYPES

o A pointer type variable holds a memory address or a special value; e.g., nil
o Provides  indirect addressing
o Provides a way to manage dynamic memory
o A pointer can access memory that is dynamically created (e.g. heap)
o Pointers add addressing flexibility and control dynamic storage management

   Design Issues of Pointers
   What are the scope of and lifetime of a pointer variable?
   What is the lifetime of a heap-dynamic variable?
   Are pointers restricted as to the type of value to which they can point?
   Are pointers used for dynamic storage management, indirect addressing, or both?
   Should the language support pointer types, reference types, or both?

   Pointer Operations
   Two fundamental operations: assignment and dereferencing
   Assignment is used to set a pointer variables value to some useful address
   Dereferencing yields the value stored at the location represented by the pointers value
   Dereferencing can be explicit or implicit

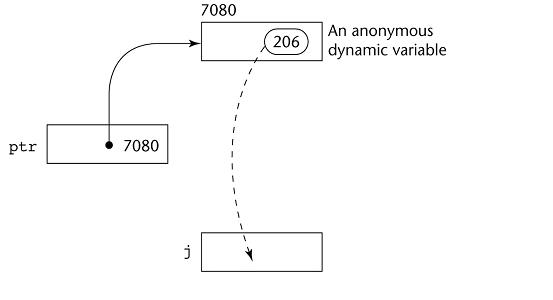

   C++ has explicit operation via *; e.g.

      j = *ptr

   sets j to the value located at ptr


   Problems with Pointers
   Dangling pointer: A pointer points to de-allocated a heap-dynamic variable
   Dangling object: An allocated heap-dynamic variable has no pointer (memory
   leak)
   Cross-linked pointers: heap-dynamic variable with two pointers (sometimes
   desirable)

   Pointers in C/C++ powerful and dangerous; Ex. C
   Explicit dereferencing and address-of operators
   (void *) can point to any type and be type checked but not de-referenced (Ex. C)
   In C, pointers can point to pointers can point to pointers....
   (C double pointers)

   Limited pointer arithmetic is supported in C/C++

     float stuff[100];
     float *p;
     p = stuff;

     *(p+5) is equivalent to stuff[5] and  p[5]
     *(p+i) is equivalent to stuff[i] and  p[i]

    p = p + stuff; <= not OK

   Pointers in Fortran 95 point to heap and non-heap variables that have the
   TARGET attribute assigned in the declaration; Implicit dereferencing

   C-style pointers in C# are available only in unsafe code:

       unsafe {
           int i = 10;
           int* px1 = &i;
       }

   Reference Types
   C++ includes a special kind of pointer type called a reference type that is
   used primarily for formal parameters;
   C++ reference type behaves strictly like an alias (see C++ code )
   In a reference, you never see the address and you have implicit assignment
   and dereferencing - (see C++ code)
   THERE IS NO EXPLICIT DEREFERENCING

   Advantages of both pass-by-reference and pass-by-value
   Java extends C++ reference variables to replace pointers entirely
   References refer to call instances
   C# includes both the references of Java and C pointers (in unsafe code)

   Evaluation of Pointers
   Dangling pointers and dangling objects are problems as is heap management

   Pointers or references are necessary for dynamic data structures--can't
   design a language without them

   Representations of Pointers
   Depends on register and address size
   Large computers use single values
   Intel microprocessors use segment and offset (2 16-bit addresses)

   Solutions to Dangling Pointer Problem

   o automatically de-allocate dynamic objects at the end of pointer's scope
   (Ada to some extent)

   Tombstone: extra heap cell that is a pointer to the heap-dynamic variable
   The actual pointer variable points only at tombstones (another indirection)
   When heap-dynamic variable de-allocated, tombstone remains but set to nil
   Costly in time and space -- not used in any major language

   Locks-and-keys: Pointer values are represented as (key, address) pairs
   Heap-dynamic variables are represented as variable plus cell for integer
   lock value
   When heap-dynamic variable allocated, lock value is created and placed in
   lock cell and key cell of pointer
   Allows multiple pointers to point to the same variable (key is copied also)
   When memory is deallocated, the key is modified to prevent other access

   Best solution: no explicit deallocation possible

   Heap Management
   A very complex run-time process
   Single-size cells vs. variable-size cells

   Two approaches to Garbage Collection

   (1) eager approach
   reclamation is gradual (C approach)

   Evaluation: less efficient but you have the maximum amount of
   memory at any given time

   (2) lazy approach
   reclamation occurs when the list of variable space becomes empty
   The run-time system allocates storage cells as requested and disconnects
   pointers from cells as necessary; garbage collection then begins

   Evaluation: more efficient but when you need it most, it works worst
   (takes most time when program needs most of cells in heap)


*  BIT TYPES
   (not covered in text)

   Systems programming often requires access to individual bits and data
   structures that take up less storage than primitive data types

   The use of pointers and bit-level operators can almost replace assembly code
   (Note: Only about 10 % of UNIX is assembly code - the rest is C)
   Example:  C's bit fields and
    displaying bit by bit
