Chapter 10 - Implementing Subprograms
SUBPROGRAM LINKAGE
The subprogram call and return operations of a language are together called subprogram linkage.
Subprogram call actions:+ Parameter passing methods + Binding nonstatic local variables + Save return address of calling program (address of next statement) + Transfer of control to callee + Access to nonlocal variables if subprogram nesting Subprogram return actions: + copy outmode parameters + deallocate memory (including stack) + restore control to callerACTIVATION RECORDS FOR SIMPLE SUBPROGRAMS
"Simple"
+ local variables are static only (not stack-dynamic)
+ no recursion
+ subprograms are not nested
Call Semantics:
+ Save the execution status of the caller
+ Carry out the parameter-passing process
+ Pass the return address to the callee
+ Transfer control to the callee
Return Semantics:
+ If pass-by-value-result parameters are used, move the current values of
those parameters to their corresponding actual parameters
+ If a function, move the functional value to a place the caller can get it
+ Restore the execution status of the caller
+ Transfer control back to the caller
Two parts of an executable: Code and Data
Layout of non-code part of an executing subprogram is the activation record
An activation record instance is a concrete example of an activation
record (the collection of data for a particular subprogram activation)
An Activation Record for Non-recursive Subprograms:
,--------------------,
| Local variables |
|--------------------|
| Parameters |
|--------------------|
| Return Address |
'--------------------'
The Code and Activation Records of a Program with "Simple" Subprograms
,--------------------,
main | Local variables | \
|====================| \
A | Local variables | \
|--------------------| \
| Parameters | \
|--------------------|
| Return Address | DATA
|====================|
B | Local variables | /
|--------------------| /
| Parameters | /
|--------------------| /
| Return Address | /
|====================|
main | | \
|____________________| \
A | | \
| | CODE
|____________________| /
B | | /
|____________________| /
o The compiler and linker performs all storage bindings before runtime
o everything is part of the executable file
ACTIVATION RECORDS FOR SUBPROGRAMS W/ STACK DYNAMIC VARIABLES
+ an activation record is also known as the "call frame"
+ a more complex activation record is required to support subprograms with
stack-dynamic local variables.
+ the compiler must generate code to cause implicit allocation and
de-allocation of local variables at runtime
+ an activation record instance is dynamically created when a subprogram is
called
+ the activation record format is fixed, but its size may be dynamic
+ the a declaration of a stack dynamic variable does not change the size
of the executable:
Assume you compile and execute various versions of a program with and without
static and dynamic arrays of size 100 ints:
$ gcc ./examples/week10/hw10.c
$ size a.out
The results follow. 'Size' provides the size of the text, data and bss segments
in the executable. The BSS (block starting symbol) segment is the data segment
where unitialized static variables go.
Stack static array
text data bss dec hex filename
1892 532 16 2440 988 a.out
Stack dynamic array
text data bss dec hex filename
1940 532 16 2488 9b8 a.out
Static array // note 416 bytes for static array
text data bss dec hex filename
1876 532 432 2840 b18 a.out
No array
text data bss dec hex filename
1876 532 16 2424 978 a.out
The runtime environment varies by processor, but the general layout of
memory for an executing program on most processors looks like this (the
stack grows upside down):
high memory ,---------------,
| stack |
|---------------|
| ↓ |
| |
| |
| ↑ |
| heap |
|---------------|
| data |
|---------------|
| code |
low memory '---------------'
On a Sparc processor much of the runtime stack is loaded into registers -
stack frames are large because they save register windows. From
/usr/include/sys/frame.h:
/*
* Copyright (c) 1987-1996, by Sun Microsystems, Inc.
* All rights reserved.
*/
#ifndef _SYS_FRAME_H
#define _SYS_FRAME_H
#pragma ident "@(#)frame.h 1.15 97/04/25 SMI" /* sys4-3.2L 1.1 */
#ifdef __cplusplus
extern "C" {
#endif
/*
* Definition of the sparc call frame
*/
struct frame {
long fr_local[8]; /* saved locals */
long fr_arg[6]; /* saved arguments [0 - 5] */
struct frame *fr_savfp; /* saved frame pointer */
long fr_savpc; /* saved program counter */
#if !defined(__sparcv9)
char *fr_stret; /* struct return addr */
#endif /* __sparcv9 */
long fr_argd[6]; /* arg dump area */
long fr_argx[1]; /* array of args past the sixth */
};
#ifdef _SYSCALL32
/*
* Kernels view of a 32-bit stack frame
*/
struct frame32 {
int fr_local[8]; /* saved locals */
int fr_arg[6]; /* saved arguments [0 - 5] */
caddr32_t fr_savfp; /* saved frame pointer */
int fr_savpc; /* saved program counter */
caddr32_t fr_stret; /* struct return addr */
int fr_argd[6]; /* arg dump area */
int fr_argx[1]; /* array of args past the sixth */
};
#endif
#ifdef __cplusplus
}
#endif
#endif /* _SYS_FRAME_H */
#0 fac (n=1) at hw10.c:120 #1 0x0001090c in fac (n=2) at hw10.c:121 #2 0x0001090c in fac (n=3) at hw10.c:121 #3 0x000108bc in main () at hw10.c:114
Terms "activation record" and "stack frame" and "call frame" are interchangeble.
Typical Activation Record for a Language with Stack-Dynamic Local Variables and No Recursion:
,--------------------,
| Local variables |
|--------------------|
| Parameters |
|--------------------|
| Dynamic Link |
|--------------------|
| Return Address |
'--------------------'

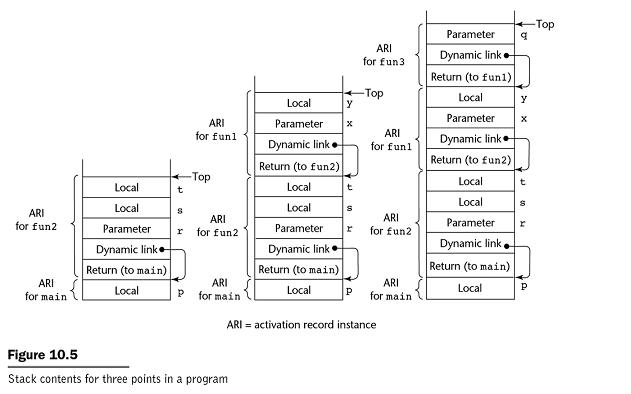

Dynamic Chain and Local Offset Q & A
Dynamic stack activation records allow for the possibility of multiple simultaneous activations of the same subprogram (recursion). The stack activation record must also hold the return value from the recursive call. Example:
----------------------
| Return Value | <= return value from the recursive call
|--------------------|
| Local variables |
|--------------------|
| Parameters |
|--------------------|
| Dynamic Link |
|--------------------|
| Return Address |
'--------------------'
See runtime stack (fac.c
with trace)
IMPLEMENTING NESTED SUBPROGRAMS IN STATIC SCOPED LANGUAGES
Note: this is not the same topic as passing a nested subprogram as a parameter (ch. 9 covers that topic)
Implementing static scoping in a language that does not support nested subprograms is simple: a variable is either local to its function or has scope across the compilation unit or the executable (blocks are one exception and are discussed below). Binding to global variables is done at compile time. A reference to local variable X in function foo is resolved at runtime by using the local_offset to X (which the compiler determined) into foo's activation record.
If a static-scoped language (Fortran 95, Ada, JavaScript, GNU C) uses stack-dynamic local variables and allow subprograms to be nested, the problem is not so easy. Example: If func1 is nested in func2 and X is declared in func2, then resolving a reference to X in func1 means binding func1:X to func2:X in the call frame of func2.
The problem becomes one of locating a non-static non-local reference in another frame on the stack. You first must find the correct activation record instance and then determine the correct offset within that activation record instance.
Static semantic rules guarantee that all non-local variables that can be referenced have been allocated in some activation record instance that is on the stack when the reference is made; i.e., if function foo is nested in function foobar, foo will never be called unless foobar is called first.
Static Chain Method.
Static chains are the primary method of implementing accesses to non-local
variables in static-scoped languages with nested subprograms.
A static chain is a chain of static links that connects certain activation
record instances. The static chain from an activation record instance
connects it to all of its static ancestors.
The static link in an activation record instance for subprogram A points
to one of the activation record instances of A's static parent.
A static link is added to the activation record in addition to a dynamic link. Access to nonlocals is a (chain_offset,local_offset) pair that is known at compile time. The actual name of the variable is not needed to find the value on the stack.
Example Pascal Program:
program MAIN_2;
| var X : integer;
|
| procedure BIGSUB;
| | var A, B, C : integer;
| |
| | procedure SUB1;
| | | var A, D : integer;
| | | begin
| | | A := B + C; #1 references A in SUB1 (0,2)
| | |_ end; { SUB1 }
| |
| | procedure SUB2(X : integer);
| | | var B, E : integer;
| | |
| | | procedure SUB3;
| | | | var C, E : integer;
| | | | begin { SUB3 }
| | | | SUB1;
| | | | E := B + A: #2 references A in BIGSUB (2,3)
| | | |_ end; { SUB3 }
| | |
| | | begin { SUB2 }
| | | SUB3;
| | | A := D + E; #3 references A in BIGSUB (1,3)
| | |_ end; { SUB2 }
| |
| | begin { BIGSUB }
| | SUB2(7);
| |_ end; { BIGSUB }
|
| begin
| BIGSUB;
|_ end; { MAIN_2 }
Call sequence for MAIN_2
MAIN_2 calls BIGSUB
BIGSUB calls SUB2
SUB2 calls SUB3
SUB3 calls SUB1
The static scoping of the above code displayed graphically:
,---------------------------------------,
| MAIN_2 |
| var X |
| ,--------------------------------, |
| | BIGSUB | |
| | var A, B, C | |
| | ,------------------------, | |
| | | SUB1 | | |
| | | var A, D | | |
| | | A = B + C <== 1 | | |
| | '------------------------' | |
| | | |
| | ,-------------------------, | |
| | | SUB2( X ) | | |
| | | var B, E | | |
| | | ,-----------------, | | |
| | | | SUB3 | | | |
| | | | var C, E | | | |
| | | | SUB1; | | | |
| | | | E = B + A <==2 | | | |
| | | '-----------------' | | |
| | | | | |
| | | SUB3; | | |
| | | A = D + E; <== 3 | | |
| | '-------------------------' | |
| | SUB2(7); | |
| '--------------------------------' |
| BIGSUB; |
'---------------------------------------'
MAIN_2 calls BIGSUB
BIGSUB calls SUB2
SUB2 calls SUB3
SUB3 calls SUB1
The chain_offset/local_offset pairs for each access to A are:
(where chain_offset is the nesting depth)
1 => (0,2) // variables are counted starting at one from right to left
2 => (2,3)
3 => (1,3)
A local_offset of 3 references the first local variable in SUB1

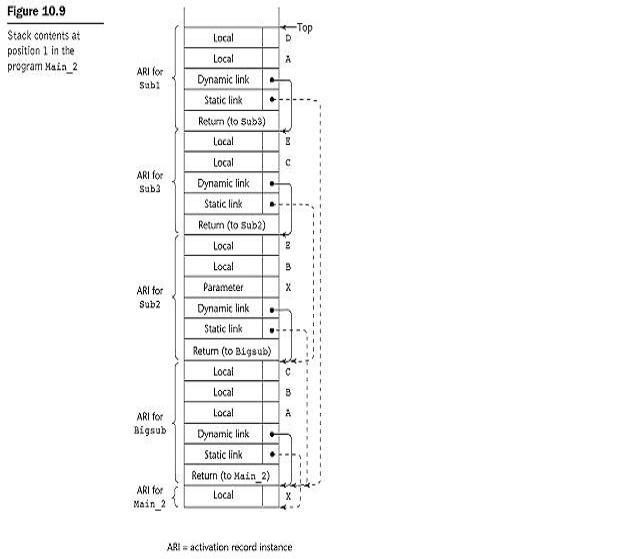

Stack Contents at Position 1 in Main_2:
fig. 10.9
Note that each static link points to the bottom of the prior activation record in the chain.
Display Method.
An alternative to static chains is a "display". In this implementation
static links are NOT stored in the activation record but in a single array.
The contents of the display at any given time is a list of addresses of
the accessible activation record instances.
Accesses to nonlocals require exactly two steps for every access:
display_offset + local_offset takes you directly to the address.
Displays not widely used in modern languages.
IMPLEMENTING BLOCKS
Blocks are user-specified local scopes for variables (similar to static scoping of nested subprograms). An example in C:
int x = 3;
{
int x = 5;
}
The lifetime of inner x begins when control enters the block and ends when control exits the block; the scope of inner x is within block only. Blocks must be implemented so that access to x does not interfere with the variable x in another scope. There are two primary methods to implement blocks.
Static Chain Method.
Access is by static chain process as done with nested subroutines.
Treat blocks as parameter-less subprograms that are always called
from the same location.
Each block has an activation record; i.e.,
an instance is created each time the block is executed.
Stack Method.
Since the maximum storage required for a block can be statically
determined, this amount of space can be allocated after the local
variables in the activation record; each block is a "static" part of
the AR of the procedure it belongs to (ANSI C does this); block
variables are pushed and popped off a "stack" of locals in that area;
access to a variable is resolved to the most recent instance of that
variable on the stack see code
Example: What happens at reference d = 5?
____________________________ |main () | | int d, e | e <- stack top | _______________________ | d <- reference is resolved to first d | | while () | | d | | int a, b, c | | c | | __________________ | | b | | | while () | | | a | | | int d, e, | | | e | | | d = 5; | | | => d | | |________________| | | THE STACK | | | | | |______________________| | | | | ______________________ | f | | | | e | | while () | | e | | int e, f | | d | |_____________________| | THE STACK |___________________________|IMPLEMENTING DYNAMIC SCOPING
Deep Access Method.
In deep access, access to nonlocal variables is facilitated by tracing
the scope all the way back to the first instance of
the variable in the call chain. The call chain consists of the
dynamic links (frame pointers) that are used to maintain the runtime
stack; i.e., a non-local reference is bound to an address in some
activation record on the dynamic chain.
This method is similar to static chain access in nested subroutine but using the dynamic link and not the static link.
Each dynamic link points to the top of the activation record instance of the calling procedure and to the bottom of the activation record instance of the callee procedure.
Example:
void sub3() {
int x, z
x = u + v;
...
}
void sub2() {
int w, x
...
}
void sub1() {
int v, u;
...
}
void main() {
int v, u, y;
....
}
Stack:
+ -------+
| sub3 |
| x z |
| x= u+y |
+--------+
| sub2 |
| w x |
+--------+
| sub1 |
| v u |
+--------+
| sub1 |
| v u |
+--------+
| main |
| v u y |
+--------+
What happens when sub3 references x, u, and y?
By dynamic scoping the dynamic chain offset from sub3:
Access to x is 0 to sub3
Access to u is 2 to sub1
Access to y is 4 to main
Shallow Access Method.
In shallow access, a data structure separate from the runtime stack
maintains a trace of the variables. Each variable has its own stack.
Access to a nonlocal variable means that the array of variable stacks is
searched. The top of the stack holds the most recent instantiation of that
variable, and is used.
The semantics is identical semantics to that of deep access but in this method you put locals in a central table with an entry for each variable name. Each variable adds a stack entry for each instantiation . Example implementation of Shallow Access for Dynamic Scoping for same code:
-------------- | sub1 | sub1 | --------------- ------- | sub1 | sub1 | | sub3 | --------------------------------------------- | main | main | main | sub2 | sub2 | sub3 | --------------------------------------------- v u y w x z From sub3 Access to x is to sub3 Access to u is to sub1 Access to y is to mainA comparison: Deep access provides faster subprogram linkage but slower access to nonlocals. Shallow access provides faster access to nonlocals but slower subprogram linkage.
